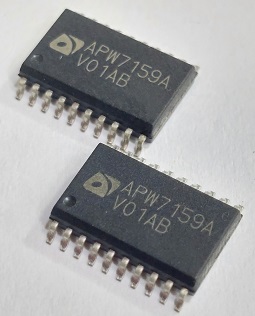

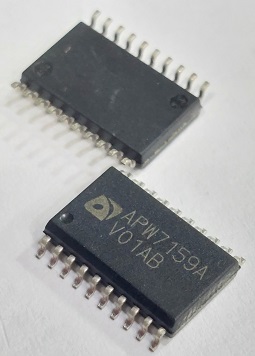

APW7159A SOP-20PIN
Dual Channel Synchronous Buck PWM Controller for SMPS
Single 12V Power Supply Required
· Excellent Output Voltage Regulation
– 1.0V±0.8% Internal Reference Over Line and
Temperature
· Simple Single Loop Control Design
– Voltage Mode PWM Control
· 0~100% Duty Ratio
· Programmable Frequency Range from 50kHz to
400kHz (Constant 50kHz when Floating)
· Integrated Soft-Start and Soft-Off (Patent Pending)
· Support Pre-Biased Power-On
· Both Channel with 180o
Phase Shift
· Integrated Boot-Strap Diode
· Over-Current Protection
– Sense High Side MOSFET’s RDS(ON)
· 120% Over-Voltage Protection
· 50% Under-Voltage Protection
· Over-Temperature Protection
· Available in SOP-20 Package
· Lead Free and Green Devices Available
177,000 تومان
1 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
The APW7159A is a dual channel voltage mode and synchronous PWM controller which drives dual N-channel
MOSFETs. The two channels are operated with 180 degree phase shift.
The device integrates all of the control, monitoring, and
protecting functions into a single package; provides two
controlled power output with over-voltage, overtemperature, and over-current protections.
The APW7159A provides excellent regulation for output
load variation. The internal 1.0V temperature-compensated reference voltage provides high accuracy of 0.8%
over line and temperature. The device includes a 50kHz
free-running triangle-wave oscillator that is adjustable
from 50kHz to 400kHz.
توضیحات تکمیلی
| Package |
SOP20 |
|---|---|
| کیفیت |
original |
