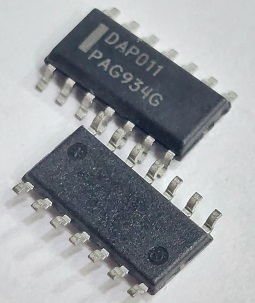

DAP011 DAP011DR2 SOP-14
• 5.0 V – 5.0 mA Reference Voltage
• Internal Temperature Shutdown
• Direct Optocoupler Connection
• Extremely Low No−Load Standby Power
• Adjustable Soft−Start
• This is a Pb−Free Device*
Typical Applications
• High Power AC/DC Converters for TVs, Set−Top
Boxes, etc.
• Offline Adapters for Notebooks
• All Power Supplies
• Current−Mode Control with Adjustable Skip−Cycle
Capability
• Internal Ramp Compensation
• Adjustable Frequency Jittering for Better EMI
Signature
• Auto−Recovery Internal Output Short−Circuit
Protection
• Adjustable Timer for Improved Short−Circuit
Protection
• Dedicated Latch Input
• +500 mA/−800 mA Peak Current Capability
• Fixed Frequency Versions at 65/100 kHz
192,000 تومان
1 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
PWM Current−Mode
Controller for High−Power
Universal Off−Line Supplies
Housed in an SO−14 package, the DAP011/DAP011C
represents an enhanced version of the Maximus, DAP008,
controller. Due to its high drive capability, SpeedKing drives
large gate−charge MOSFETs which, together with internal
ramp compensation and a user selectable frequency
jittering, ease the design of modern AC/DC adapters.
With an internal structure operating at a fixed 65/100 kHz
frequency, the controller directly connects to the
high−voltage rail for a loss less and clean startup sequence.
Current−mode control also provides an excellent input
audio−susceptibility and inherent pulse−by−pulse control.
Internal ramp compensation easily prevents subharmonic
oscillations from taking place in continuous conduction
mode designs
توضیحات تکمیلی
| Package |
SOP14 |
|---|---|
| کیفیت |
original |
