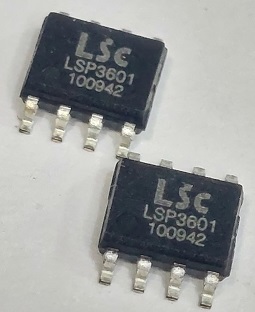

LSP3601 SOP8
Wide supply voltage operating range: 1.8 to 15V
Reference voltage precision: 4%
Low current consumption
Operation Mode 5.5mA
Standby Mode: 1µA
High speed oscillator frequency: 1MHz max
Programmable Soft Start function (SS)
Short Circuit Protection function (SCP)
Totem-pole output with adjustable on/off current
(for NPN transistors or n-channel MOSFET)
Logic level control stand-by mode function
Package: SOP8/MSOP8/TSSOP8
81,000 تومان
1 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
LSP3601 Step-Up DC/DC Controller
The LSP3601 is a boost topology switching regulator
control IC for battery-used applications field. The
LSP3601 includes a totem-pole single output stage
for driving NPN transistor or N-MOS, high precision
reference (0.5V) for comparing output voltage with
feedback amplifier, an internal dead-time control for
controlling the minimum duty cycle, programmable
soft start with short circuit protection function and
logic level control for operating mode or standby
mode
توضیحات تکمیلی
| Package |
SOP-8 |
|---|---|
| کیفیت |
original |
