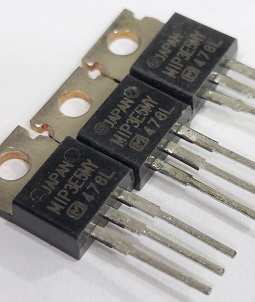

MIP3E5MY TO-220

توضیحات

This is 700V, 1.1A, MOSFET, Silicon MOS-type integrated circuit.

Features

• Worldwide input support, further reducing power consumption during light load
(50% reduction in the maximum than MIP2ExD series)

• Various protection circuit Built by the possible real-time protection

• Internal soft-start

Absolute Maximum Ratings (Ta = 25°C)

1. Drain voltage : VD = 700 V

2. Control voltage : VC = 8 V

3. Drain current: ID = 1.1 A

4. Peak drain current : IDP = 1.7 A

5. Control current : IC = 0.1 A

6. Channel temperature: Tch = 150 °C

7. Storage temperature: Tstg = -55 to +150 °C
