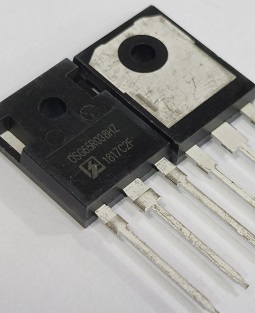

OSG65R038HZ TO-247
MOSFET transistor OSG65R038HZ is an N-channel power MOSFET The transistor has a voltage tolerance of 600 volts and a maximum current of 80 amps
Applications
PC power
Telecom power
Server power
EV Charger
Motor driver
634,000 تومان
15 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
Type Designator: OSG65R038HZF
Marking Code: OSG65R038HZ
Type of Transistor: MOSFET Type of Control Channel: N -Channe Maximum Power Dissipation 500 W Maximum Drain-Source Voltage: 650 V
Maximum Gate-Source Voltage: 30 V Maximum Gate-Threshold Voltage: 4.5 V
Maximum Drain Current: 80 A
The OSG65R038HZ transistor belongs to the field-effect transistor (FET) category. It is of the n-channel MOSFET type and is intended for use in amplifying, switching and stabilizing devices.
The OSG65R038HZ transistor has a modern design that ensures minimal energy consumption and high reliability. It can be used in a wide range of temperatures – from -55 to +150 degrees Celsius.
توضیحات تکمیلی
| Package |
TO-247 |
|---|---|
| کیفیت |
original |
