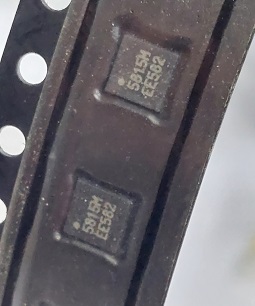

RDA5815M QFN 20
5815M IC RDA5815M QFN-20 Signal IC is a highly advanced and integrated signal IC designed for RF-to-baseband satellite receiver applications. Notably, this cutting-edge IC delivers exceptional performance, flexibility, and integration, making it an ideal solution for a wide range of satellite reception systems.
Applications:
1. Set-top boxes
2. Digital video recorders
3. Digital television
4. Satellite PC-TV
178,000 تومان
4 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
IC RDA5815M QFN-20 Signal IC Specifications:
Single-chip RF-to-baseband Satellite receiver
CMOS Fully integrated RF front end
Low noise and wide dynamic range zero-IF receiver
Input frequency range: 250 to 2300 MHz
Input signal level: -100 to 5 dBm
More than 85dB gain control range
Fully integrated PLL (dividers, charge pump, phase & frequency detectors, loop filt, etc.)
Integrated RX VCO
Integrated baseband LPF with selectable cut-off Applications frequency from 4MHz to 40MHz
with 1MHz step
Integrated LNA with RF AGC Integrated reference oscillator (27MHz is the default)
I2C bus interface
Automatic gain control
0.11μm RF CMOS technology
3V to 3.6V operation
power consumption less than 600mW
Lower profile packages:
Set-top boxes
Digital video recorders
Digital television
Satellite PC-TV
توضیحات تکمیلی
| Package |
QFN-20 |
|---|---|
| کیفیت |
original |
