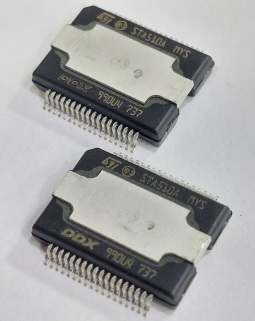

STA510A SSO-36
- Multipower BCD technology
- Minimum input/output pulse width distortion
- 150 mΩ RDS(on) complementary DMOS output stage
- CMOS compatible logic inputs
- Thermal protection
- Thermal warning output
- Undervoltage protection
- Short-circuit protection
507,000 تومان
1 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
44 V, 5.5 A quad power half-bridge digital audio amplifier
The STA510A is a monolithic, quad, half-bridge stage in multipower BCD technology. The device can be used as dual-bridge or
reconfigured, by connecting the CONFIG pin to the VDD pin, as single-bridge with double current capability, or as half-bridge (binary mode) with half current capability.
The device is particularly designed to make the output stage of a stereo all-digital high-efficiency (DDX) amplifier, which employs a pulse-width modulator driver. The STA510A is capable of delivering an output power of 50 W into 3 Ω loads with THD = 10% and VCC = 36 V. In single BTL configuration the device can deliver 200 W into a 3 Ω load with THD = 10% and VCC = 36 V.
The input pins have a threshold proportional to VL pin voltage.
توضیحات تکمیلی
| Package |
SSO36 |
|---|---|
| کیفیت |
original |
