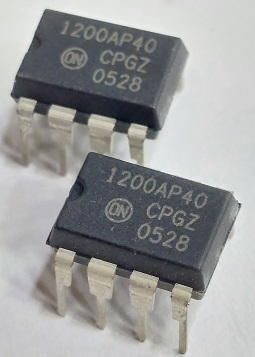

NCP1200AP40 DIP8

توضیحات

NCP1200A
PWM Current−Mode
Controller for Universal
Off−Line Supplies Featuring
Low Standby Power

Housed in SOIC−8 or PDIP−8 package, the NCP1200A enhances
the previous NCP1200 series by offering a reduced optocoupler
current together with an increased drive capability. Due to its novel

concept, the circuit allows the implementation of complete off−line
AC−DC adapters, battery charger or a SMPS where standby power is a
key parameter.
With an internal structure operating at a fixed 40 kHz, 60 kHz or
100 kHz, the controller supplies itself from the high−voltage rail,
avoiding the need of an auxiliary winding. This feature naturally eases
the designer task in battery charger applications. Finally,
current−mode control provides an excellent audio−susceptibility and
inherent pulse−by−pulse control.
When the current setpoint falls below a given value, e.g. the output
power demand diminishes, the IC automatically enters the so−called
skip cycle mode and provides excellent efficiency at light loads.
Because this occurs at a user adjustable low peak current, no acoustic
noise takes place.
