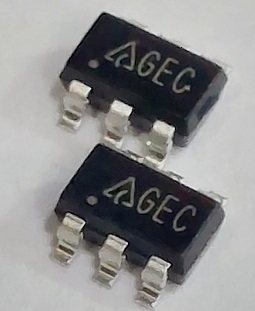

AP3031KTR-G1 CODE GEC SOT23-6PIN
Applications
7′ to 10′ LCD panels
Digital photo frames
GPS receivers
EPC
PDVD
25,000 تومان
100 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
General Description
The AP3031 is an inductor-based DC/DC boost converter designed to drive LED arrays. 1.4A
switching
current allows AP3031 to be used in different 7′ to 10′
LCD panel backlights (3*13 LED arrays typically).
A constant frequency 1MHz PWM control scheme is
employed in this IC, which means tiny external components can be used. Specifically, 1mm tall 4.7μH
inductor and 0.47μF output capacitor for the typical
application is sufficient.
The over output voltage protection is equipped in
AP3031, which protects the IC under open load condition. The AP3031 includes UVLO, soft-start, current
limit and OTSD to protect the circuit.
The AP3031 is available in standard SOT-23-6, TSOT23-6 and SOIC-8 packages.
توضیحات تکمیلی
| Package |
SOT23 6PIN |
|---|---|
| کیفیت |
original |
