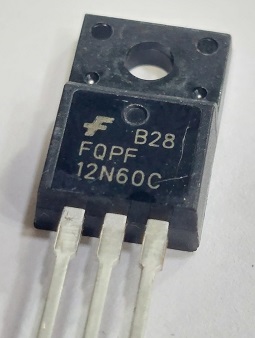

FQPF12N60C 12N60 TO-220F
Features
• 12A, 600V, RDS(on) = 0.65Ω @VGS = 10 V• Low gate charge ( typical 48 nC)
• Low Crss ( typical 21pF)• Fast switching• Improved dv/dt cap
FQP12N60C / FQPF12N60C
600V N-Channel MOSFET
55,000 تومان
1 در انبار
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
توضیحات
Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary, planar
stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the avalanche
and commutation mode. These devices are well suited for high
efficient switched mode power supplies, active power factor
correction, electronic lamp ballast based on half bridge
topology.
توضیحات تکمیلی
| Package |
TO-220 |
|---|---|
| کیفیت |
HIGH COPY |
